Exhaust FanPostion：Home > Products > Ventilation System > Fan
产品参数
| 规格 | 风叶直径mm | 风叶转速r/m | 输入功率kw | 电流A | 风量M3/h | 外型尺寸mm | 重量kg |
| WFD-600HE | 600 | 1400 | 0.37 | 1.1 | 20000 | 750*750*400 | 27 |
| WFD-750HE | 750 | 735 | 0.55 | 1.5 | 26000 | 900*900*400 | 38 |
| WFD-900HE | 900 | 560 | 0.55 | 1.5 | 28000 | 1000*1000*400 | 43 |
| WFD-1000HE | 1000 | 560 | 0.75 | 2 | 36000 | 1100*1100*400 | 47 |
| WFD-1100HE | 1100 | 505 | 0.75 | 2 | 40000 | 1220*1220*400 | 53 |
| WFD-1250HE | 1250 | 420 | 1.1 | 2.8 | 46000 | 1380*1380*400 | 68 |
| WFD-1400HE | 1400 | 420 | 1.5 | 3.6 | 55000 | 1530*1530*400 | 77 |

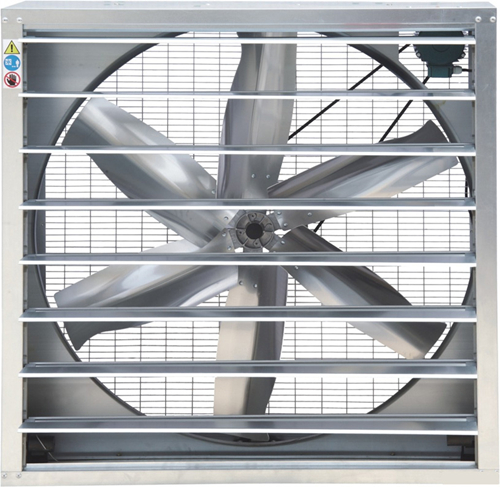

Exhaust Fan
Stainless steel fan blade, galvanized sheet frame, no deforming, no broken, attractive and durable
Adopted CAD/CAM technology, high overall pressure, large air flow, low noise,stableoperation,long service life
With the motor rotating, shutters open and close automatically, thus preventing dust and moisture. It’s the best choice for ventilation in greenhouse and plants.
The protective net is single-sided, that is one side is protective net and the other is shutter
The shutter’s support bar is plastic and the linkage is galvanized sheet.
Product Description
For a 700m3(about 100m2) plant, one set exhaust fan exchanges the air indoor and exterior 63 times (44000÷700m3), thus making it like directly setting up one family fan in every position . As a result, the environment is kept nice and cool.
clean
If the dust tends to block the air flow, the normal operating system can clear it by itself
Low pressure water steam spraying or gently scrubbing is allowable , while chlorine or the other chemicals with sharp flavor are forbidden.
