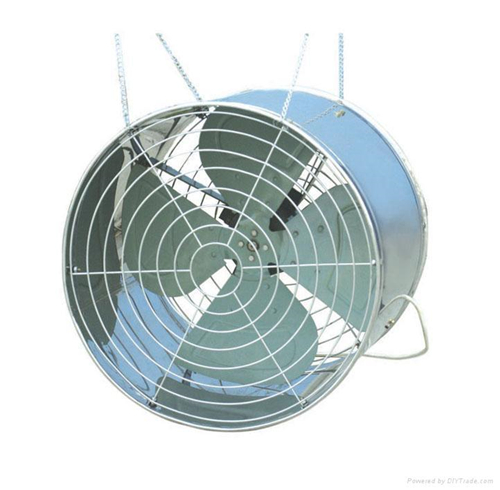

circulation FanPostion：Home > Products > Ventilation System > Fan
产品参数
| 型号 | 规格mm | 电压V | 频率Hz | 输入功率w | 风量m3/H | 全压Pa | 风叶转速R/m | 流程m | 外型mm | 扇叶片数 |
| WHF-400 | 400 | 220 | 50 | 120 | 460 | 60 | 1400 | 12-16 | 460*460*310 | 5 |
| WHF-500 | 500 | 380 | 50 | 250 | 5800 | 60 | 950 | 18-22 | 560*560*380 | 7 |
|
Product specification |
|||||
|
Adopting stainless steel housing, extended design of ventilating duct, large air flow, accurate positioning,and long service life.Operate smoothly, low noise, low energy consumption, and nice appearance. |
|||||
|
Model |
Rated voltage |
Frequency |
Rated power |
Speed ratio |
Blowing rate |
|
WL400-22050 |
220 |
50Hz |
145W |
1400R/min |
2880m3/h |
|
WL500-22050 |
220 |
50Hz |
350W |
1400R/min |
5700m3/h |
