Brown

Made of absorbent Kraft paper， Strong hydroscopicity , corrosion resistance,

long usable life,Evaporation efficiency is by up to 80%

Absorbing water naturally，fast diffuse, durable efficiency

No surfactant and harmful chemicals, no phenol, no harmful, easy installation

BlacK

Improved some shortcomings of cooling pad, fragile, inconvenient cleaning,etc

High strength, strong corrosion resistant, high impact resistance, easy cleaning

Green

Special technology，inhibiting growth of bacteria and algas

Beautiful exterior，environmental protection, no pollution

Green-Brown

Made from environmental materials, superior quality, two color paper, yellow and green

Bright color，good choice for home and market.

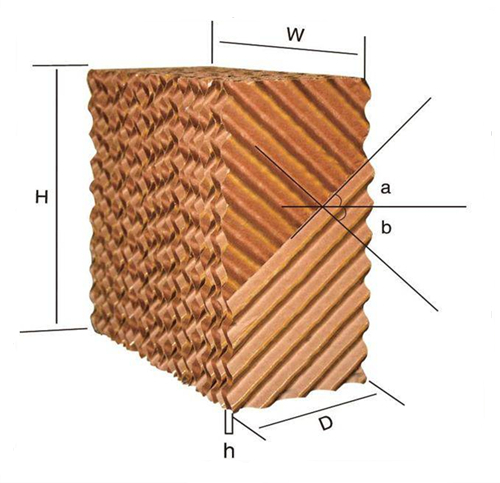

Specification and Dimensions

Specification	7090	6090	5090
Height（mm）	1500 1800 2000	1500 1800 2000	1500 1800 2000
Width（mm）	600 300 200	600 300 200	600 300 200
Thickness（mm）	100 150 200 300	100 150 200 300	100 150 200 300
Ripple Height（mm）	7	6	5
Ripple Angle（°）	45*45	45*45	45*45

Different sizes could be made according to the customers’ requirements.
