Film Lock Channel、Spring Lock TopPostion：Home > Products > Greenhouse accessories > Shading Accessories
|

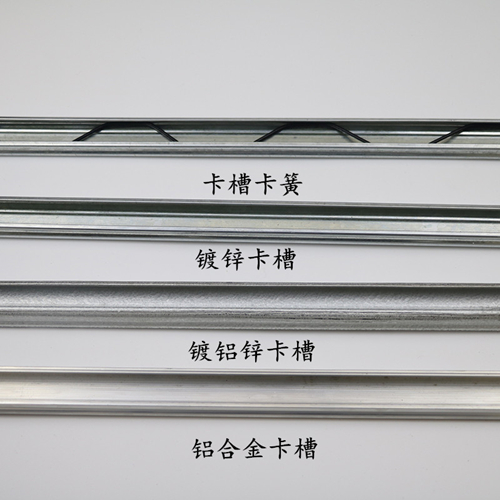

Film Lock Channel |
|||||
|
Galvanized Profile |
|||||
|
Type |
Material |
Thickness |
Specification |
ZN coat |
Length |
|
WLKC-0.7 |
Hot dip galvanized steel |
0.7mm |
30mm(W)*11mm(H) |
≥100g/㎡ |
3m/4m/6m |
|
WLKC-0.9 |
Hot dip galvanized steel |
0.9mm |
30mm(W)*11mm(H) |
≥275g/㎡ |
3m/4m/6m |
|
Aluminum Profile |
|||||
|
Type |
Material |
Thickness |
Width |
Length |
|
|
WLKC-A-1.0 |
Aluminum |
1.0mm |
28.mm |
3m/4m/6m |
|
|
WLKC-A-1.2 |
Aluminum |
1.2mm |
30mm |
3m/4m/6m |
|
|
WLKC-A-1.5 |
Aluminum |
1.5mm |
33mm |
3m/4m/6m |
|
卡簧
|
Greenhouse Wiggle Wire/ Spring Lock Top |
|||
|
Item |
Plastic coated |
Normal dipping plastic |
High-intensity dipping plastic |
|
Diameter |
2.3mm |
2.5mm |
2.7mm |
|
Length after installed |
2m |
2m |
2.2m |
|
Sawthooth depth |
32mm |
32mm |
37mm |
|
Hardened stell |
NO |
NO |
YES |
|
Cover plastic |
nonsticking easy to loose |
sticking |
super sticking |
|
Life time |
2-3 years |
5 years |
above 10 years |
