PC particle boardPostion：Home > Products > Greenhouse covering materials > Polycarbonate

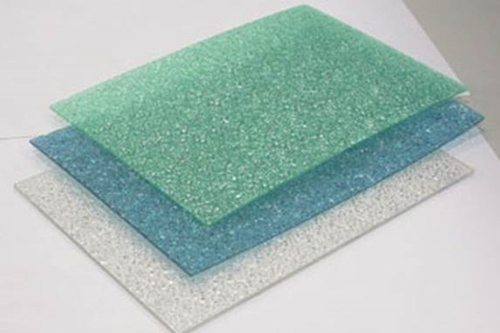

PC颗粒板是表面布满类似钻石的PC颗粒，不平整的聚碳酸酯实心板，因此也叫PC钻石板、聚碳酸酯颗粒板，基本的物理化学性质与普通平整的PC耐力板基本一致。它区别于普通耐力板的特质是：光线透过之后会不均匀散射，会有模糊的视觉效果，增强了遮蔽性和隐蔽性，同时对强光直射可以起到慢反射和散射作用，使光线柔和均匀，有效减少炫光和光污染。另外，它还具备聚碳酸酯板普遍具有的抗冲击、阻燃、隔音等性质。
|
隔音效果 |
|||||||||||
| 厚度 | 2mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 12mm |
| 声音降低值 | 23 | 25 | 27 | 28 | 29 | 30 | 31 | 31.5 | 32 | 33 | 34 |
|
Performance |
Unit |
Figure |
|
Proportion |
kg/㎡ |
1.2 |
|
Impact Strength |
N/m |
850 |
|
Tensile Strength |
N/mm |
>60 |
|
Bending Strength |
N/mm |
100 |
|
Elastic Modulus |
Mpa |
2400 |
|
coefficient of expansion |
mm/m℃ |
0.065 |
|
elongation at break |
% |
100 |
|
specific heat |
KJ/kg.k |
1.17 |
|
Thermal conductivity |
W/㎡℃ |
2.3-2.9 |
|
Long term use temperature |
℃ |
-40-+120 |
|
Heat distortion temperature |
℃ |
140 |
|
fire protecting performance |
Nonflammable |
